■ 2볼트 취부용 For 2 Bolt Attachment |

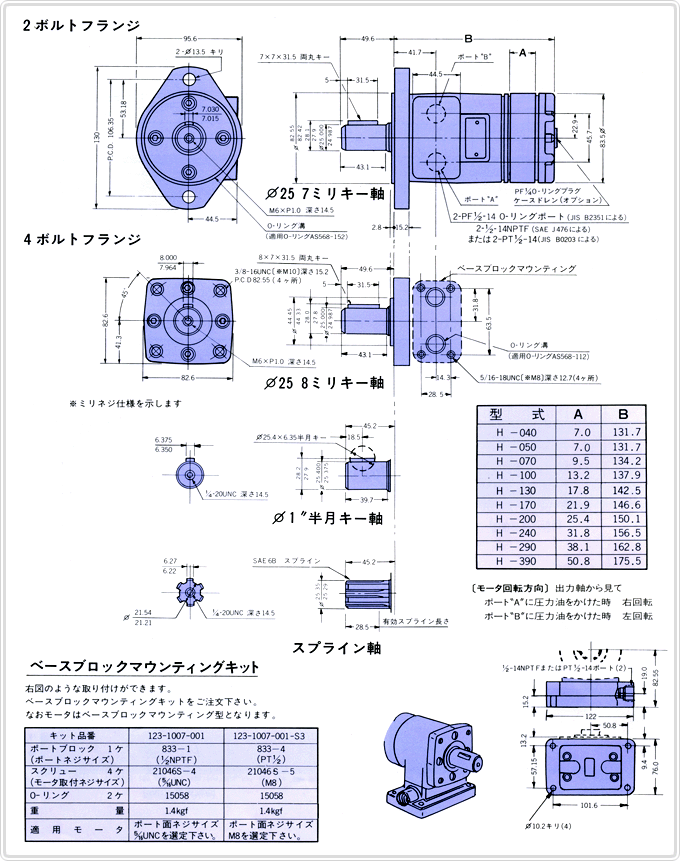

■ H+S Motor |
|
| Type |
Rated Flow
(cm3/rev) |
Rated Rotation
(rpm) |
Max. Rotation
(rpm) |
Rated Output
(kgf·m) |
Max. Output
(kgf·m) |
Rated Pressure
(kgf/cm2) |
Max. Pressure
(kgf/cm2) |
| H-040 |
40 |
930 |
1,000 |
6.0 |
8.5 |
125 |
170 |
| H-050 |
51 |
910 |
980 |
8.0 |
11.0 |
125 |
170 |
| H-070 |
69 |
770 |
880 |
11.0 |
15.0 |
125 |
170 |
| H-100 |
96 |
560 |
670 |
15.0 |
21.0 |
125 |
170 |
| H-130 |
129 |
420 |
560 |
21.0 |
27.0 |
125 |
170 |
| H-170 |
159 |
340 |
450 |
23.0 |
31.0 |
115 |
155 |
| H-200 |
184 |
290 |
390 |
26.0 |
35.0 |
110 |
150 |
| H-240 |
230 |
240 |
320 |
29.0 |
41.0 |
100 |
140 |
| H-290 |
277 |
200 |
260 |
34.0 |
42.0 |
95 |
120 |
| H-390 |
369 |
150 |
200 |
40.0 |
47.0 |
85 |
100 |
|
사양 및 도면 보기

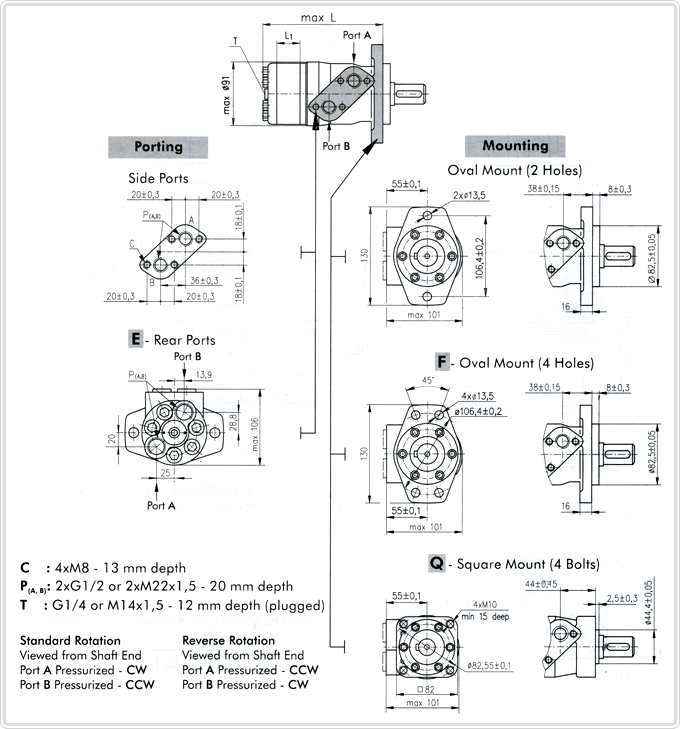

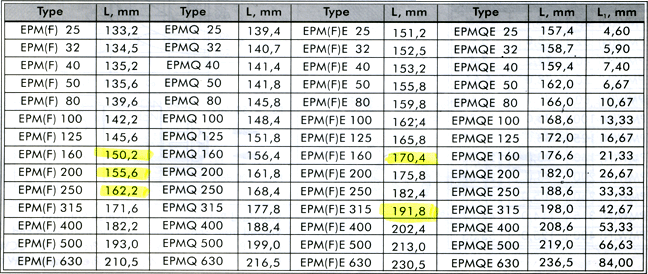

■ M+S Motor |
|
| Type |
Rated Flow
(cm3/rev) |
Working Pressure (kgf/cm2) |
Rev. count
(RPM) |
| Rated |
Max. |
| EPM-50 |
50.8cc |
140 |
210 |
1,180 |
| EPM-80 |
78.8cc |
140 |
210 |
760 |
| EPM-100 |
98.6cc |
140 |
210 |
600 |
| EPM-125 |
123.5cc |
140 |
210 |
485 |
| EPM-160 |
158.6cc |
140 |
210 |
380 |
| EPM-200 |
197.9cc |
140 |
210 |
302 |
| EPM-250 |
247.5cc |
135 |
175 |
240 |
| EPM-315 |
316.5cc |
115 |
175 |
190 |
| EPM-400 |
396.5cc |
90 |
160 |
150 |
|
사양 및 도면 보기

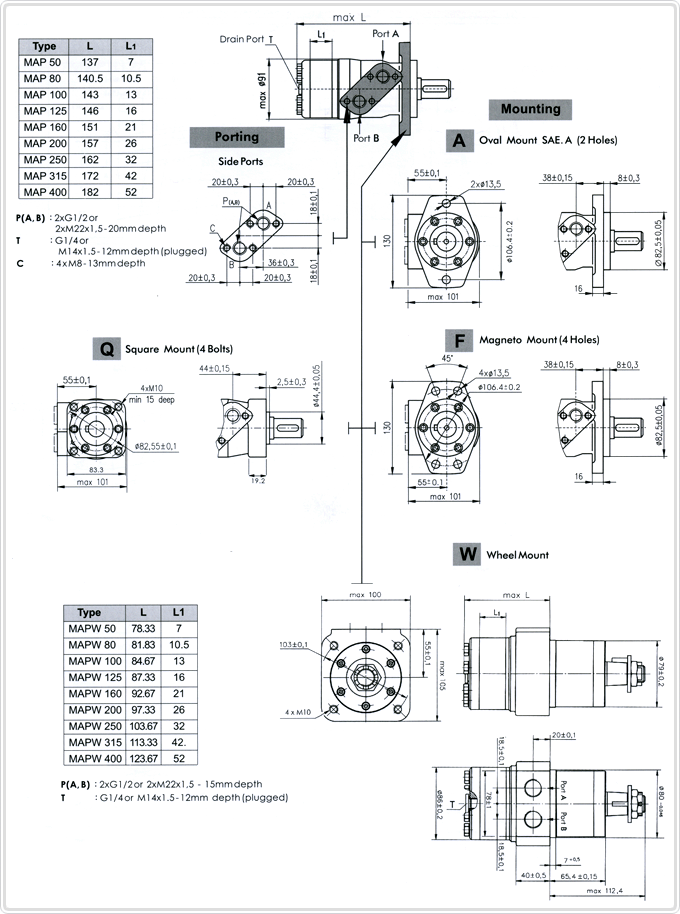

■ MAXMA Motor (MAP/BMRN)
|
|
| Type |
Rated Flow
(cm3/rev) |
Working Pressure (kgf/cm2) |
Rev. count
(RPM) |
| Rated |
Max. |
| MAP-50 |
50.8cc |
140 |
210 |
1,180 |
| MAP-80 |
78.8cc |
140 |
210 |
760 |
| MAP-100 |
98.6cc |
140 |
210 |
600 |
| MAP-125 |
123.5cc |
140 |
210 |
485 |
| MAP-160 |
158.6cc |
140 |
210 |
380 |
| MAP-125 |
123.5cc |
140 |
210 |
485 |
| MAP-160 |
158.6cc |
140 |
210 |
380 |
| MAP-200 |
197.9cc |
140 |
210 |
302 |
| MAP-250 |
247.5cc |
135 |
175 |
240 |
| MAP-315 |
316.5cc |
115 |
175 |
190 |
| MAP-400 |
396.5cc |
90 |
160 |
150 |
| MARSN-100 |
98.6cc |
160 |
210 |
600 |
|
사양 및 도면 보기
|
|
